Description

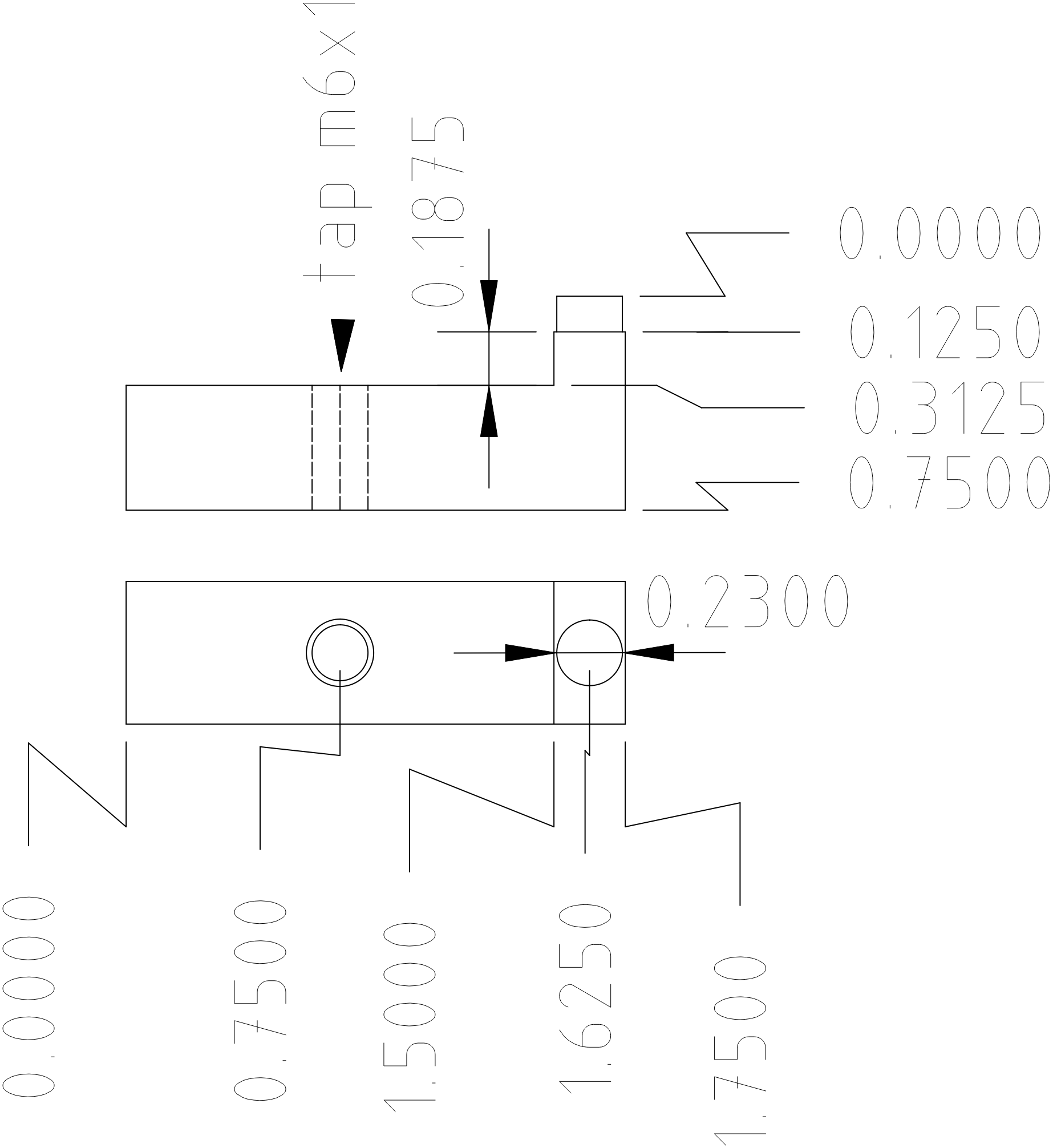

This is the bare material mount bar clamp. This version is intended for Panel Pros serial number 2027 and on that have a 3/16 angle for the material mount bars to set on. If your serial number is 2027 or greater and less than 3070, you will need to make an easy mod to the bar by drilling out the existing 1/8″ anti rotation hole to 1/4″.

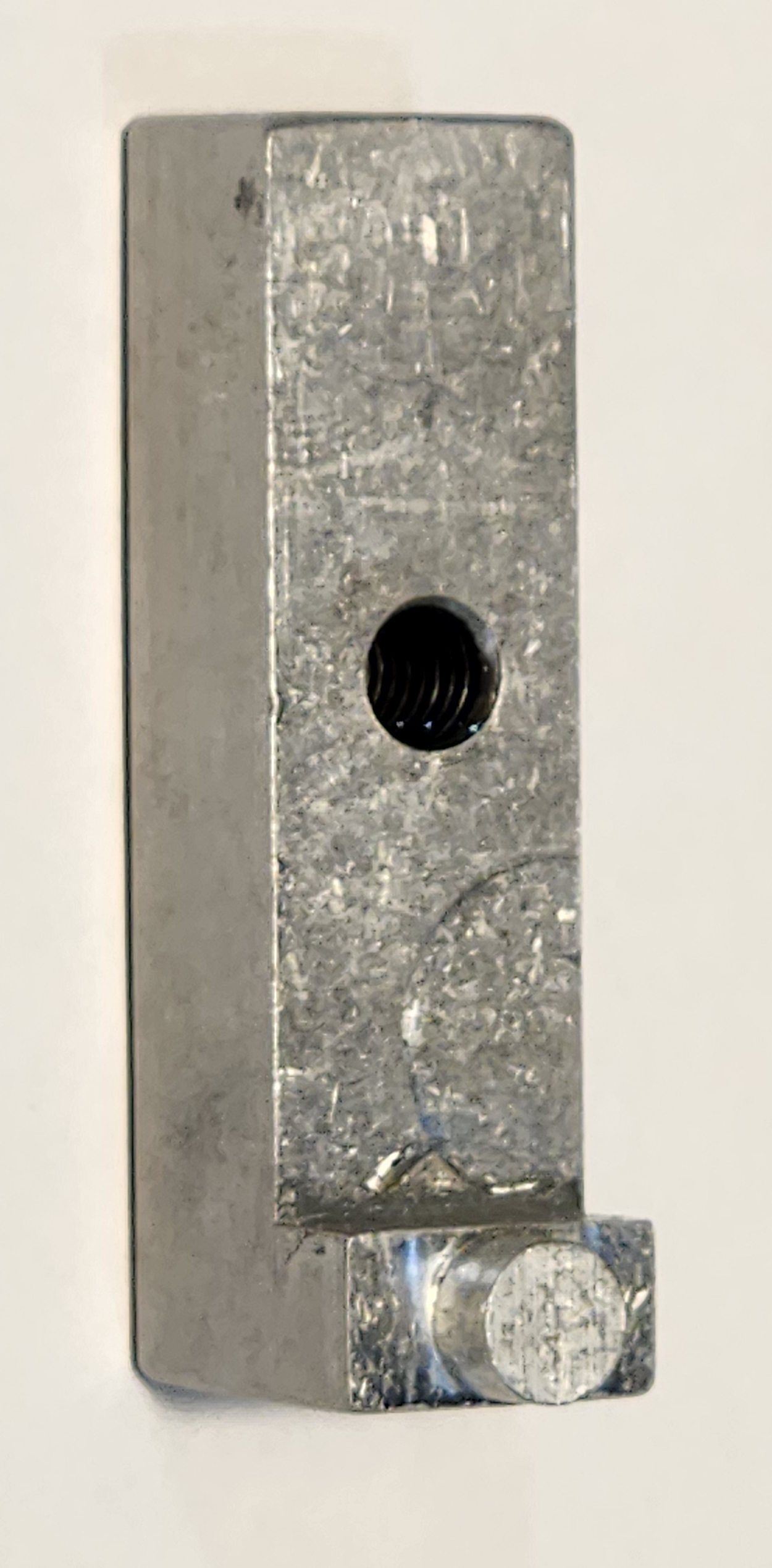

Panel Pros less than 2070 used a 1/8″ pin as an anti rotation device. In addition they used a plastic washer to accommodate a change from 1/8″ side rail angles to 3/16. The new clamps use a 1/4″ pin milled out of the base material.
